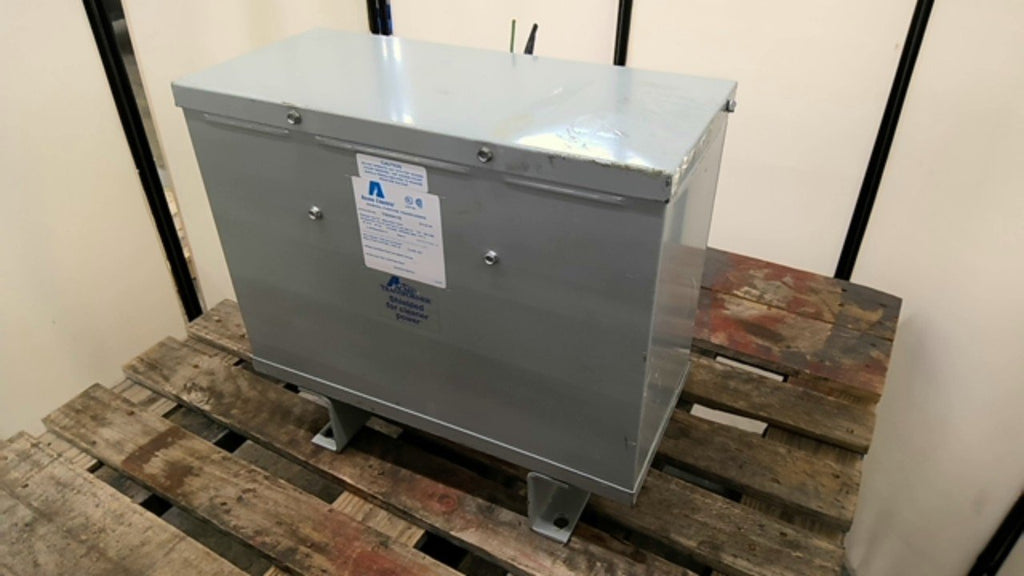

Acme Electric T3533411S 15Kva Transformer 480Hv 120/240Lv 3Ph

Acme Electric T3533411S 15Kva Transformer 480Hv 120/240Lv 3Ph

For sale is a used Acme Electric T3533411S dry-type encapsulated distribution transformer.

This is a heavy-duty industrial transformer with a 480V Delta primary and 240V Delta / 120V secondary, rated at 15 kVA and 60 Hz. Acme/Hubbell specifies this model as a floor-mounted, encapsulated, shielded transformer with a NEMA 3R enclosure.

Specifications

• Brand: Acme Electric
• Model / MPN: T3533411S
• Type: Dry-Type Distribution Transformer
• Power Rating: 15 kVA
• Phases: 3
• Frequency: 60 Hz
• Primary Voltage: 480 VAC Delta
• Secondary Voltage: 240 VAC Delta / 120 VAC
• Primary Configuration: 480?
• Secondary Configuration: 240? / 120V
• Mounting: Floor / Stand-Alone
• Enclosure: NEMA 3R
• Construction: Encapsulated
• Electrostatic Shield: Yes
• Insulation Class: 180°C
• Maximum Temperature Rise: 115°C
• Taps: 2 BNFC
• Winding Material: Aluminum
• UPC: 047503733851
• Manufacturer: Acme Electric / Hubbell

Condition

This transformer is USED.

It may have normal cosmetic wear associated with previous industrial service or storage.

Buyer is responsible for confirming that the transformer is appropriate for the intended application and for having it installed/tested by a qualified professional.

You will receive the exact transformer shown in the photographs.
