Gardner Denver DuroFlow 4506 GGDBCDA Rotary PD Blower 4" 4000 RPM

Gardner Denver DuroFlow 4506 GGDBCDA Rotary PD Blower 4" 4000 RPM

GARDNER DENVER DUROFLOW 4506 POSITIVE DISPLACEMENT BLOWER

Model / Catalog Number: GGDBCDA
Configuration: 4506-HL
Series: DuroFlow 45

New surplus Gardner Denver DuroFlow 4506 industrial rotary positive-displacement blower.

The DuroFlow 4506 is a heavy-duty bi-lobe positive-displacement blower designed for industrial air movement and pneumatic conveying applications.

Gardner Denver's DuroFlow series provides oil-free air delivery and is used in demanding industrial applications including pneumatic conveying and dry bulk material handling.

SPECIFICATIONS:

• Manufacturer: Gardner Denver
• Product Line: DuroFlow
• Series: 45
• Model: 4506
• Catalog Number: GGDBCDA
• Configuration: 4506-HL
• Type: Rotary Positive Displacement Blower
• Design: Bi-Lobe
• Connection Size: 4"
• Maximum Speed: 4,000 RPM
• Maximum Pressure: 15 PSI
• Maximum Vacuum: 16 inHg
• Maximum Discharge Temperature: 350°F
• Maximum Temperature Rise: approximately 250°F
• Air Delivery: Oil-Free
• Mounting: Horizontal
• Lubrication: Dual Splash Lubrication

PERFORMANCE:

The Gardner Denver 4506 model is capable of approximately:

• Up to 611 CFM at 1,750 RPM under certain operating conditions
• Up to 517 CFM at 4,000 RPM at 15 inHg vacuum
• Maximum operating speed: 4,000 RPM

Actual airflow depends on operating speed, pressure/vacuum and system conditions.

APPLICATIONS:

Suitable for industrial applications including:

• Pneumatic conveying
• Dry bulk material handling
• Cement
• Grain
• Flour
• Sugar
• Minerals
• Powders
• Industrial air movement

CONDITION:

NEW SURPLUS / UNUSED.

This blower has not been installed in service and is being sold as surplus inventory.

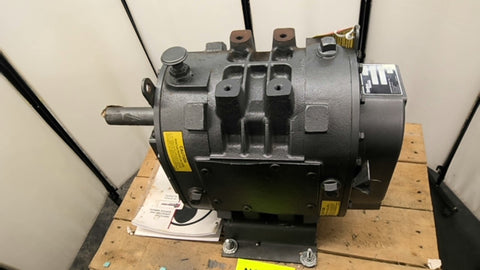

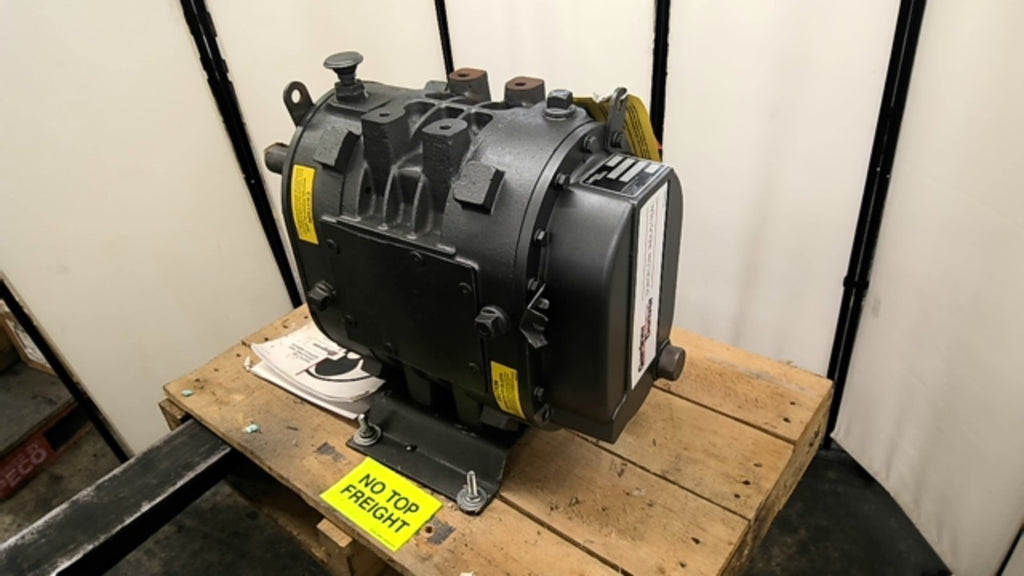

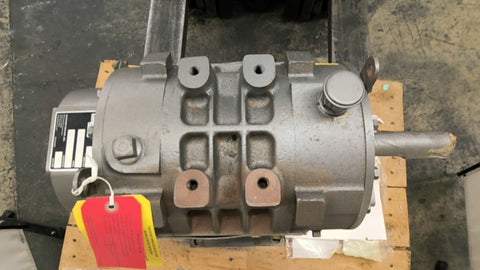

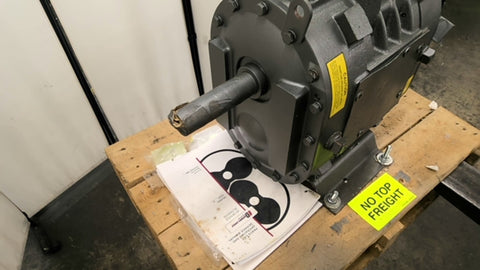

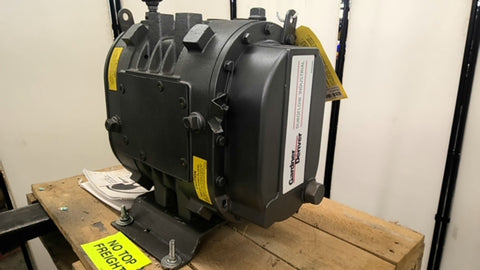

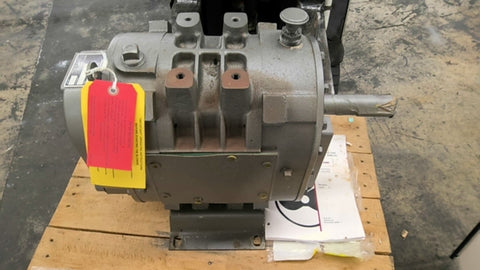

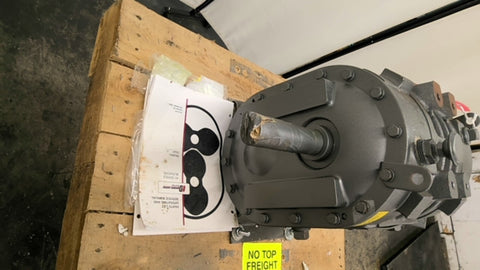

There may be minor cosmetic marks from storage, handling or transportation. Please inspect all photographs carefully for the exact condition.
