Tolomatic ServoWeld GSWA04-MV42 Electric Actuator 460VAC 6" Stroke

Tolomatic ServoWeld GSWA04-MV42 Electric Actuator 460VAC 6" Stroke

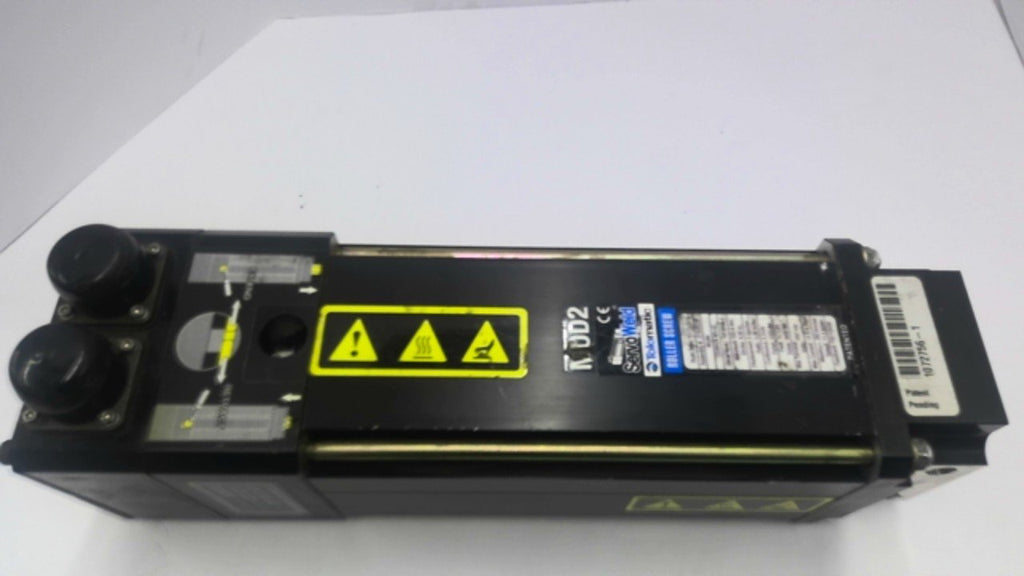

For sale is a used Tolomatic ServoWeld GSWA04-MV42 integrated motor actuator, designed for industrial resistance/spot-welding applications.

The GSWA04 is part of Tolomatic's ServoWeld family of integrated motor actuators. The MV42 configuration uses a 460 VAC bus voltage. Tolomatic documentation identifies the GSWA04 family as a roller-screw actuator designed for high-force welding applications.

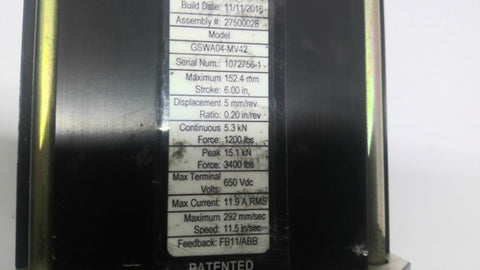

Specifications

• Brand: Tolomatic
• Product Family: ServoWeld
• Model: GSWA04-MV42
• Type: Integrated Motor Actuator
• Actuator Series: GSWA04
• Motor Configuration: MV42
• Bus Voltage: 460 VAC
• Screw Type: Roller screw
• Available Screw Leads: 4, 5, or 10 mm depending on configuration
• Maximum GSWA04 weld thrust: Up to approximately 4,000 lbf depending on screw configuration
• Standard Protection: IP65
• Application: Resistance/spot welding and industrial automation

Important — Used / Untested

THIS UNIT IS UNTESTED. Unit was pulled from a working environment

I have not connected it to a compatible servo drive or verified motor operation, feedback, encoder, brake, or actuator movement.

Because ServoWeld actuators are configured for specific servo systems, please verify the complete model, motor configuration, feedback, screw lead, stroke, and electrical requirements before purchasing. Tolomatic notes that GSWA actuators are individually configured for the robot/servo system in their application.

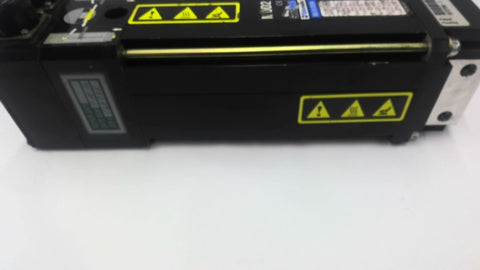

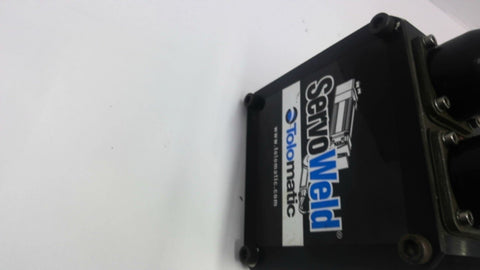

You will receive the exact unit shown in the photographs.

No servo drive, cables, controller, mounting hardware, or other accessories are included unless specifically shown.
