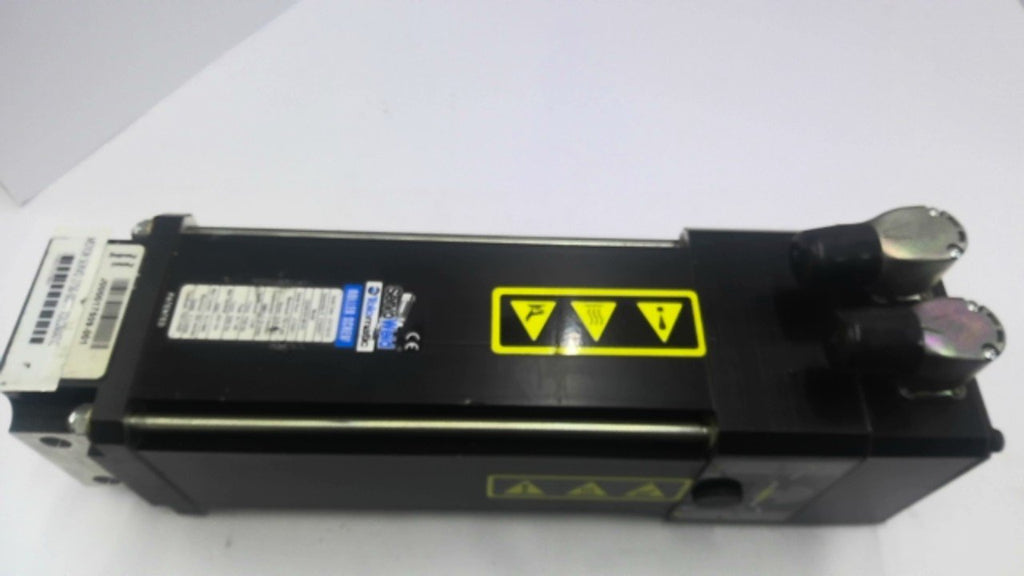

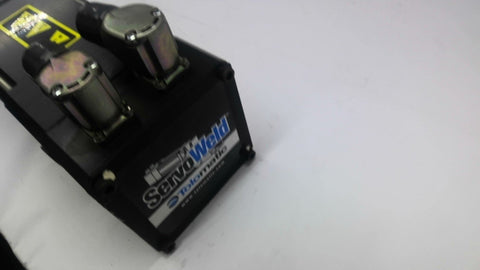

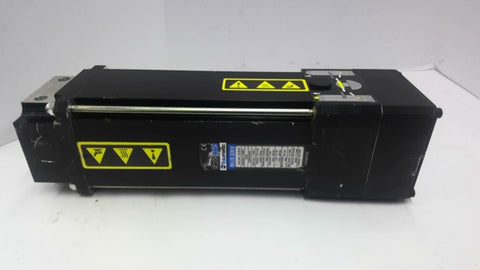

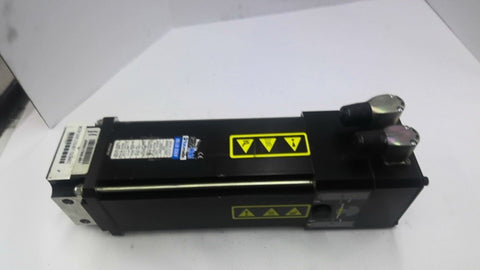

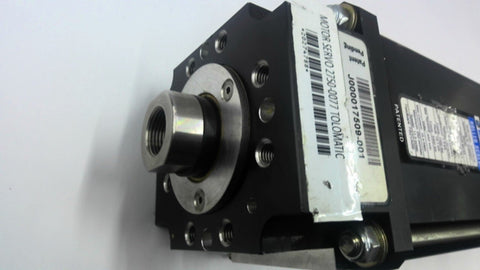

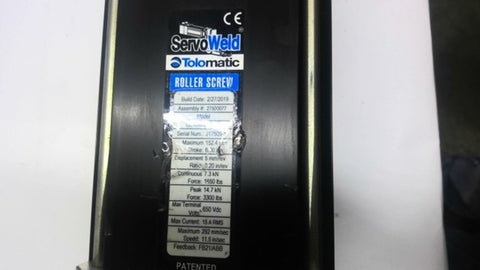

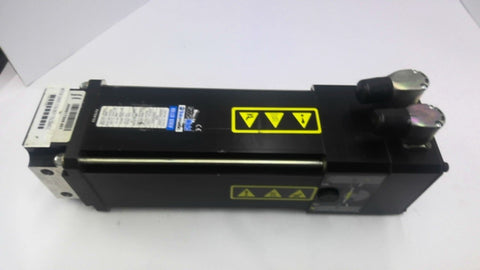

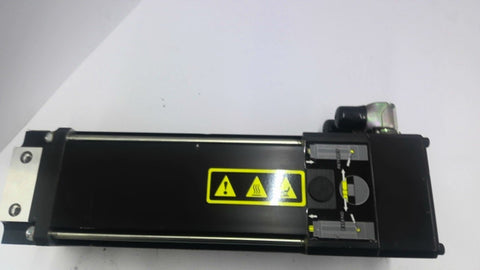

Tolomatic ServoWeld GSWA04-MV43 Roller Screw Linear Actuator 460V

For sale is a used Tolomatic ServoWeld GSWA04-MV43 integrated motor actuator designed for industrial resistance spot-welding applications.

The GSWA04 uses a roller screw and is specifically designed for high-force, high-cycle resistance spot welding. Tolomatic lists the GSWA04 with a maximum 6" (152 mm) stroke and maximum force of 3,300 lbf (14.7 kN).

Specifications

• Manufacturer: Tolomatic
• Product Family: ServoWeld
• Model: GSWA04-MV43
• Type: Integrated Motor Electric Linear Actuator
• Actuator Type: Roller Screw
• Motor Configuration: MV43
• Bus Voltage: 460 VRMS
• Maximum Stroke: 6" / 152.4 mm
• Maximum Force: 3,300 lbf / 14.7 kN
• Maximum Speed: Up to 23 in/sec / 584 mm/sec, depending on configuration
• Application: Resistance Spot Welding / Industrial Automation
• Enclosure: IP65
• Condition: Used
• Testing: Untested

Tolomatic's published specifications identify the MV43 configuration as the 460 VRMS version of the GSWA04 motor.

Condition / Testing

This is a USED industrial actuator.

The unit may have scratches, scuffs, dirt, discoloration, and other cosmetic signs of previous industrial service or storage.

UNIT IS UNTESTED.

Because this is a specialized servo actuator, the buyer is responsible for confirming the exact configuration and compatibility with the intended servo system.

You will receive exactly the unit shown in the photographs.

No servo drive, cables, controller, mounting hardware, or other accessories are included unless specifically shown.
